Optimising Wall Thickness (Perimeters) for Lightweight Parts
CADDesignEngineering

Optimising Wall Thickness (Perimeters) for Lightweight Parts

By Keagan Walker (AI-assisted)•Published: 12 June 2026
Summary

Lightweight parts are created by matching wall thicknesses to your nozzle diameter. Designing walls as multiples of the nozzle diameter creates solid, void-free structures.

Balancing Mass and Strength

In engineering fields like aerospace, motorsports, and drone design, weight is critical. Designers strive to remove every unnecessary gram of mass from components to maximize fuel efficiency, acceleration, and payload capacity.

In FDM printing, weight is controlled by two factors: wall thickness (perimeters) and infill density. Understanding how to size wall perimeters is the most effective way to design lightweight parts that can still handle load.

Key Takeaway

Design wall thicknesses in CAD to match multiples of standard nozzle diameters (e.g., 0.4mm or 0.6mm) to prevent air gaps and weak points in printed shells.

1. Sizing CAD Walls for Nozzle Widths

FDM printers extrude plastic in paths of a specific width (determined by the printer's nozzle diameter). The standard nozzle is 0.4mm, which deposits a line of plastic around 0.45mm wide.

  • Wall Multiples: To print a solid wall without hollow gaps or infill, design the wall thickness in CAD to match multiples of this extrusion width.
  • Example (0.4mm Nozzle): * 2 walls = 0.9mm thickness * 4 walls = 1.8mm thickness * 6 walls = 2.7mm thickness
  • What to Avoid: If you design a wall to be 1.2mm thick, the printer will lay down two outer walls (0.9mm) and attempt to fill the remaining 0.3mm gap with a tiny, vibrating zigzag of infill. This slows down the print and results in a weaker wall.

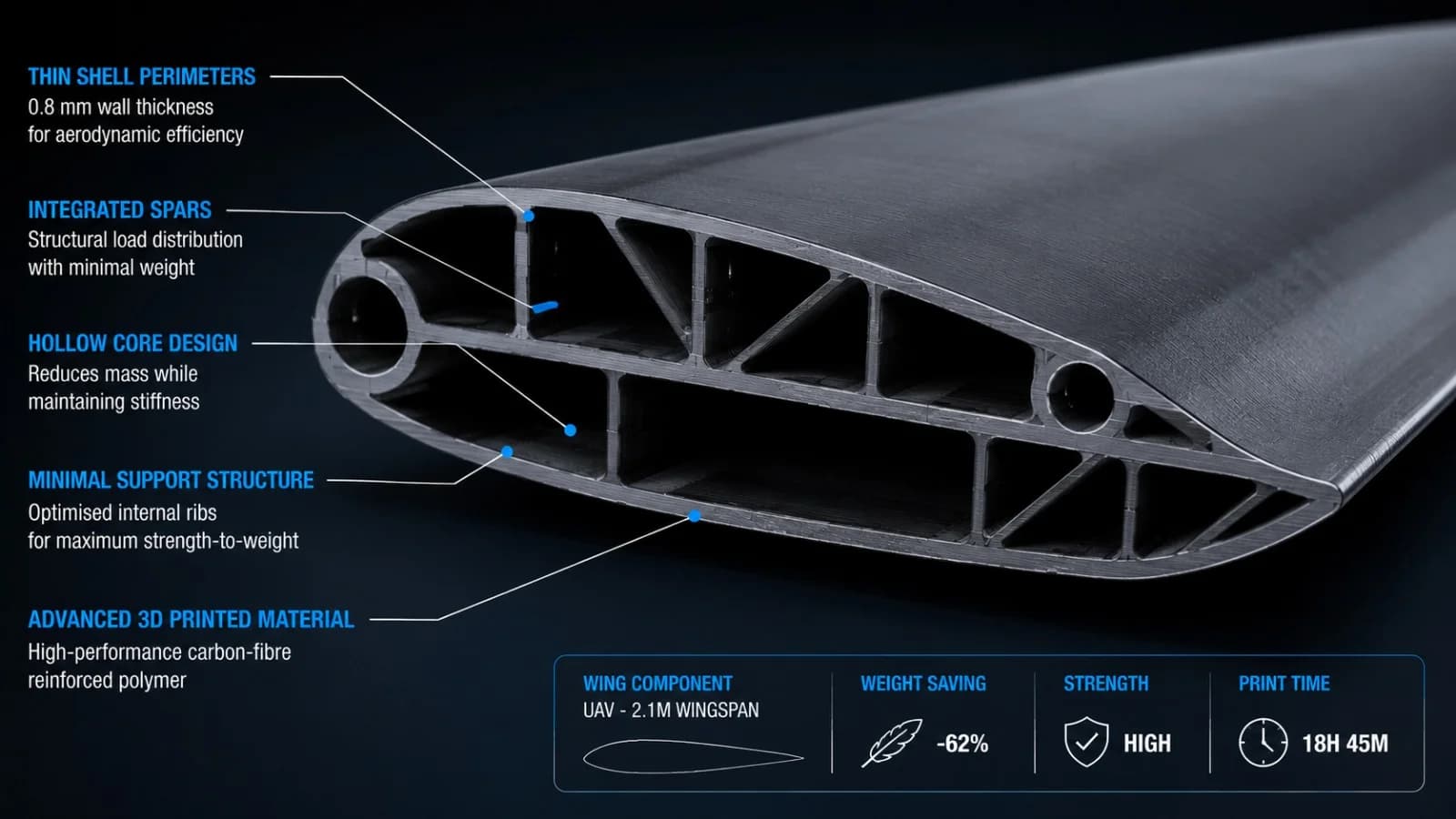

2. High-Performance lightweighting: Hollow Parts

For ultimate lightweighting, you can design parts to print completely hollow (0% infill).

  • To maintain rigidity on a hollow part, increase the wall count to 4 or 5 perimeters (1.8mm to 2.25mm thickness) and design internal support gussets or curves to prevent the hollow walls from collapsing.
  • This approach is highly effective for drone arms, cooling ducts, and non-structural covers.

Lightweighting Consultation

At NovaLab 3D, we help Yorkshire motorsports and drone developers lightweight their assemblies. Upload your files today, and we will perform a wall perimeter analysis to help you strip out excess weight.

Frequently Asked Questions

If your nozzle diameter is 0.4mm, a wall thickness of 1.2mm requires exactly 3 clean passes. A wall of 1.4mm leaves a 0.2mm gap that the printer must fill with weak gap fill.

Combine thin outer walls (2-3 perimeters) with a low-density infill pattern (like 10-15% Gyroid) to get high bending stiffness with minimal material weight.

We utilize 0.4mm nozzles for standard precision parts, and 0.6mm or 0.8mm nozzles for large structural parts where speed and strength are prioritized over fine detail.
